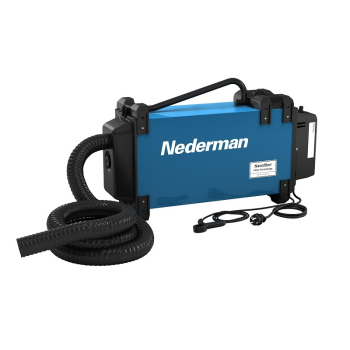

Nederman Fume Eliminator 860 110v UK Plug 70842030
Nederman_FE860_Application
Nederman_FE860_Application_Close_Up
Nederman_FE860_Control_Panel

Nederman Fume Eliminator 860 110v UK Plug 70842030

Stock Code: 100000158279
Please contact us for availability
£1,950.00 (exc VAT) per Each
Quantity: - +

Portable source capture for on-torch extraction

The Fume Eliminator 860 is designed to be carried to the working area. Although it can be used with a nozzle, it is specifically developed for on-torch applications - connected directly to the welding torch, it extracts the fume directly at the source. The FE 860 has a knob to set the desired suction level, an automatic start/stop function, which starts the unit as soon as the welding begins and significantly improved motor performance (versus the FE840/841).
The FE 860 is suitable for extraction of fume in maintenance welding applications and is compliant with ISO 21404 (W3).

  • Portable and easy to carry
  • Automatically maintains the set extraction flow - ideal for on-torch applications
  • Warnings at malfunction and when the filter is 85% and 100% full
  • High efficiency Nanofiber filter protecting the user from submicron particles. F9 (EN 779) MERV 14 (ASHRAE 52.2)
  • Designed for torches requiring max 18 kPa at connection point - according to ISO 21904
Technical data
Installation Indoor
Filter cleaning method One way filter
Application Fumes
Working pressure (kPa) 25
Max Airflow (m3/h) 180
Hose Diameter (mm) 50
Hose length (m) 2,5
Filter Area (m²) 5,3
Filter type Cartridge
Number of filter elements 1
Filter material Cellulose with nanofiber
Weight (kg) 16
Hose diameter (mm) 50


CLICK HERE FOR FULL PRODUCT DETAILS & OPTIONS

Mains VoltageSingle Phase 110v
FilterCartridge
Fume Torch CompatibleYes
